QSFP-DD
Quad Small Form Factor Pluggable Double Density Active Optical Cables
QSFP-DD is a new module and cage/connector system similar to current QSFP, but with an additional row of contacts providing for an eight lane electrical interface. The data rate of each channel can reach 25Gb/s through NRZ modulation technology, realizing 200G network transmission. Also, the data rate of each channel can reach 50Gb/s by the PAM4 modulation technology, achieving 400G network transmission, which is suitable for high-performance computing data center and cloud network. These cables utilize fiber wiring and are an ideal low-cost option for short reach applications.
QSFP-DD AOC Solutions

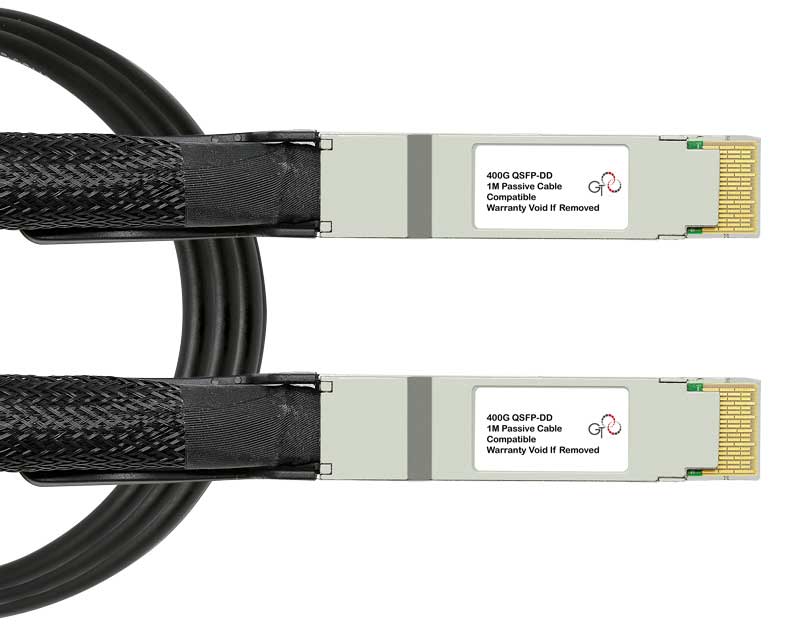

400GB QSFP-DD Passive Copper
Applications
- 400GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- OIF 56G PAM4
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
400Gbps |
Passive Twinax |
3M |
850nm |
4x 100G PAM4 |

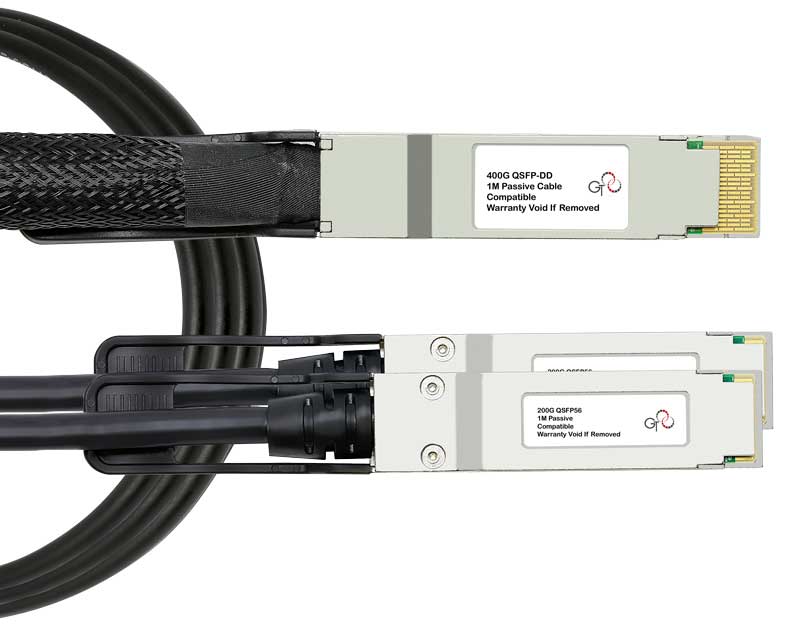

400GB QSFP-DD 2x 200GB QSFP56 Passive Copper
Applications
- 400GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3cd
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
400Gbps |
Passive Twinax |
3M |
850nm |
4x 100G PAM4 |

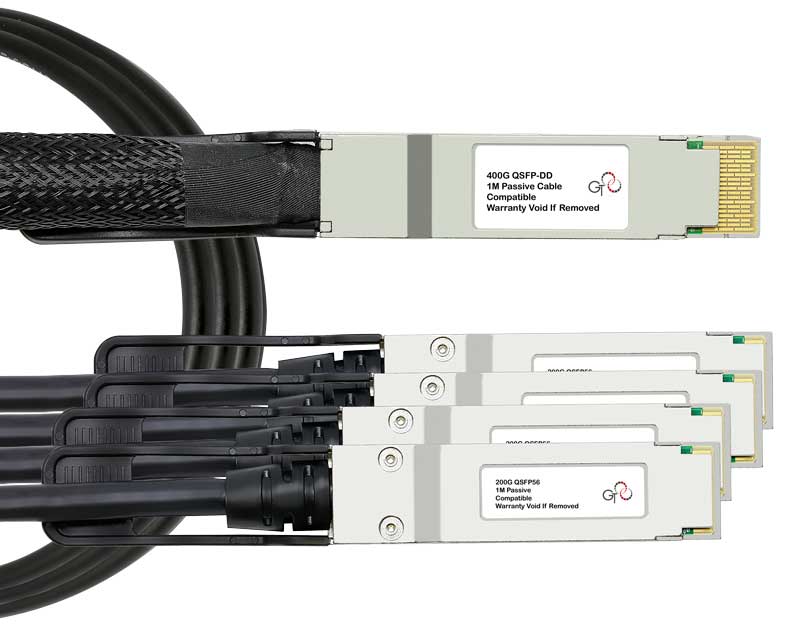

400GB QSFP-DD 4x 100GB QSFP56 Passive Copper
Applications
- 400GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3cd
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
400Gbps |
Passive Twinax |
3M |
850nm |
4x 100G PAM4 |
400GB QSFP-DD 2x 50GB QSFP56 Passive Copper
Applications
- 400GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3cd
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
400Gbps |
Passive Twinax |
3M |
850nm |
4x 100G PAM4 |
400GB QSFP-DD 8x 50GB SFP56 Passive Copper
Applications
- 400GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3cd
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
400Gbps |
Passive Twinax |
3M |
850nm |
4x 100G PAM4 |
200GB QSFP-DD Passive Copper
Applications
- 200GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3bj
- SFF-8417
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
200Gbps |
Passive Twinax |
3M |
850nm |
4x 50G PAM4 |
200GB QSFP-DD to 2x100GB QSFP28 Passive Copper
Applications
- 200GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3bj
- SFF-8417
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
200Gbps |
Passive Twinax |
3M |
850nm |
4x 50G PAM4 |
200GB QSFP-DD to 4x50GB QSFP28 Passive Copper
Applications
- 200GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3bj
- SFF-8417
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
200Gbps |
Passive Twinax |
3M |
850nm |
4x 50G PAM4 |
200GB QSFP-DD to 8x 25GB SFP28 Passive Copper
Applications
- 200GBASE Ethernet
- Serial Data Transmission
Compliance
- QSFP-DD MSA
- CMIS Rev4.0
- IEEE 802.3bj
- SFF-8417
- Infiniband EDR, QDR
- RoHS Compliant
| Data Rate | Cable Type | Max Cable Length | Wavelength | Modulation |
|---|---|---|---|---|
|
200Gbps |
Passive Twinax |
3M |
850nm |
4x 50G PAM4 |
Compatible Manufacturers
GigaTech Products has been a leading manufacturer of compatible transceivers and cables for over a decade, bringing customers affordable alternatives to Cisco, Juniper, Brocade, Dell, and HP original items. With the ability to custom code transceivers and direct attach network cables, GigaTech can provide compatible alternatives for most lesser-known brands, while ensuring 100% compatibility
Optical Transceiver Standards & Compliance
Never Sourced. Never Recycled.
All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
