QSFP28

100GBase Quad Small Form Factor Pluggable

This QSFP28 transceiver is a parallel 100Gb/s Quad Small Form-factor Pluggable optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.

QSFP28 Media Types

100GBase-SR4
100GBase-ESR4

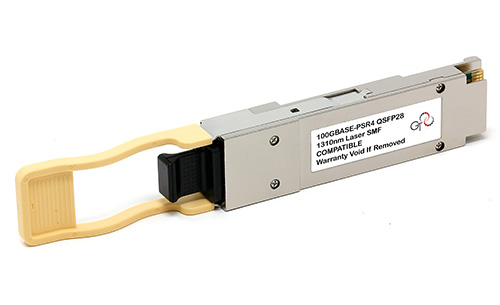

100GBase-PSM4
100GBase-SWDM4
100GBase-IR4

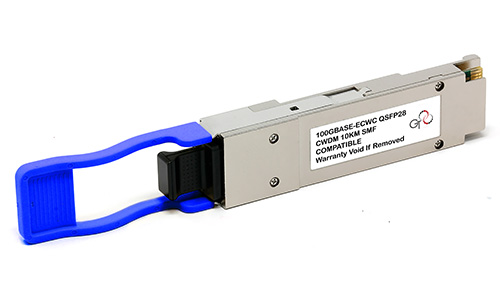

100GBase-ECWDM
100GBase-LR4
100GBase-ER4L

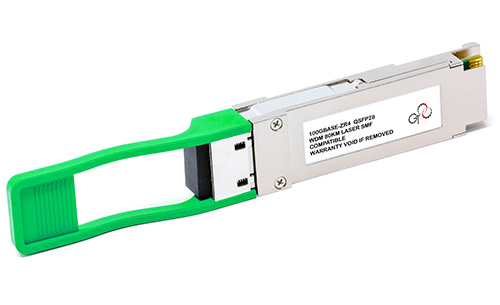

100GBase-ZR4

Features

  • Up to 103.1 Gb/s aggregate bit rates
  • Four parallel lane design
  • Hot-pluggable QSFP28 footprint
  • Uncooled 4x25Gb/s 850nm transmitter
  • MPO/MTP connector
  • Built-in digital diagnostic function
  • Up to 70m over OM3, 100m over OM4 fiber
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • MSA SFF-8665
  • IEEE 802.3bm
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s aggregate bit rates
  • Four parallel lane design
  • Hot-pluggable QSFP28 footprint
  • Uncooled 4x25Gb/s 850nm transmitter
  • MPO/MTP connector
  • Built-in digital diagnostic function
  • Up to 200m over OM3, 300m over OM4 fiber
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • MSA SFF-8665
  • IEEE 802.3bm
  • RoHS Compliant

Features

  • Up to 100 Gb/s aggregate bit rates
  • Four parallel lane design
  • Hot-pluggable QSFP28 footprint
  • 1310nm DFB laser transmitter
  • MPO/MTP connector
  • Built-in digital diagnostic function
  • Up to 2km over singlemode fiber
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • MSA SFF-8665
  • IEEE 802.3bm
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 150m over MMF
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • CWDM4 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 2KM over SMF
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • CWDM4 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10KM over SMF
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • CWDM4 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10KM over SMF
  • Single power supply 3.3V
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 30KM over SMF without FEC
  • Up to 40KM over SMF witho FEC
  • Single power supply 3.3V
  • Max power consumption 4W
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet
  • Infiniband QDR, EDR

Compliance

  • QSFP28 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

Features

  • Up to 103.1 Gb/s per wavelength
  • 4 LAN-WDM lane MUX/DEMUX
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 60KM over SMF without FEC
  • Up to 80KM over SMF with FEC
  • Single power supply 3.3V
  • Max power consumption 4W
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 MSA
  • MSA SFF-8436
  • IEEE 802.3ba
  • RoHS Compliant

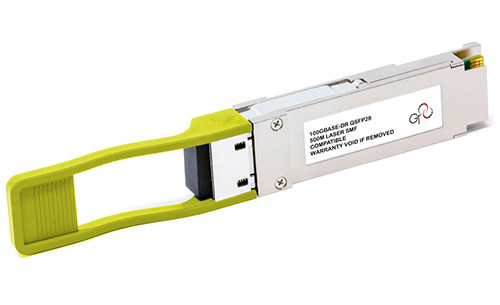

100GBase-DR
100GBase-FR

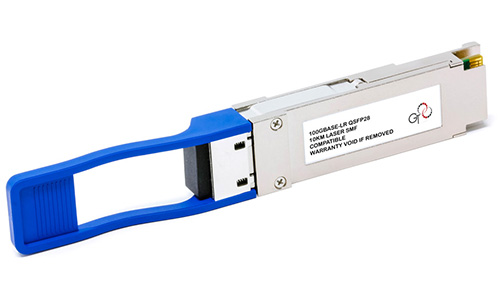

100GBase-LR

Features

  • Up to Gb/s aggregate bit rates
  • 125Gp/s PAM4 per channel
  • 4x 25Gb/s electrical interface
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 500m over singlemode fiber
  • 5 watt max power consumption
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 Lambda MSA
  • IEEE 802.3cd
  • RoHS Compliant

Features

  • Up to Gb/s aggregate bit rates
  • 125Gp/s PAM4 per channel
  • 4x 25Gb/s electrical interface
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 2km over singlemode fiber
  • 5 watt max power consumption
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 Lambda MSA
  • IEEE 802.3cd
  • RoHS Compliant

Features

  • Up to Gb/s aggregate bit rates
  • 125Gp/s PAM4 per channel
  • 4x 25Gb/s electrical interface
  • Hot-pluggable QSFP28 footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10km over singlemode fiber
  • 5 watt max power consumption
  • Operating temperature range
  • C-Temp: 0℃ to 70℃

Applications

  • 100G Ethernet

Compliance

  • QSFP28 Lambda MSA
  • IEEE 802.3cd
  • RoHS Compliant

Compatible Manufacturers

GigaTech Products has been a leading manufacturer of compatible transceivers and cables for over a decade, bringing customers affordable alternatives to Cisco, Juniper, Brocade, Dell, and HP original items. With the ability to custom code transceivers and direct attach network cables, GigaTech can provide compatible alternatives for most lesser-known brands, while ensuring 100% compatibility

Optical Transceiver Standards & Compliance​

Never Sourced. Never Recycled.

All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,

Rigorous Testing & Standards Compliance

The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
