XFP
10GBase XFI Small Form Factor Pluggable Transceivers
XFP modules are hot swappable and support multiple physical layer variants. They typically operate at near-infrared wavelengths (colors) of 850 nm, 1310 nm or 1550 nm. XFP modules use an LC fiber connector type to achieve higher density. applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They can operate over a single wavelength or use dense wavelength-division multiplexing techniques. The XFI electrical interface specification is a 10 gigabit per second chip-to-chip electrical interface specification that provides a single lane running at 10.3125 Gbit/s
XFP Media Types

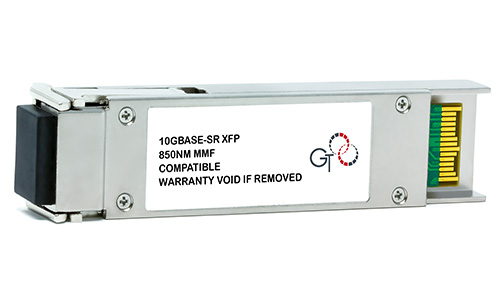

Features
- Data rates from 9.95 Gbps to 10.5 Gbps
- Up to 300M over MMF
- Uncooled 850nm VCSEL laser
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
Applications
- 10GBASE-SR/SW Ethernet
- 10GB Fiber Channel
Compliance
- IEEE 802.3ae 10GBASE-SR/SW
- XFP 10GFC
- XFP MSA
- RoHS-6

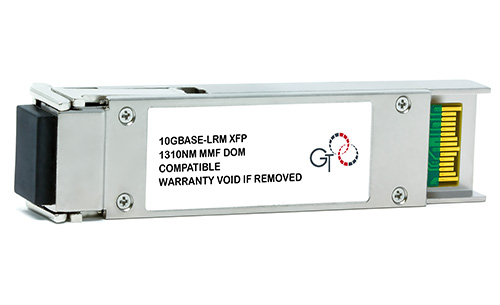

Features
- Data rates from 9.95 Gbps to 10.5 Gbps
- Up to 300M over MMF
- Uncooled 1310nm VCSEL laser
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
Applications
- 10GBASE-SR/SW Ethernet
- 10GB Fiber Channel
Compliance
- IEEE 802.3ae 10GBASE-SR/SW
- XFP 10GFC
- XFP MSA
- RoHS-6

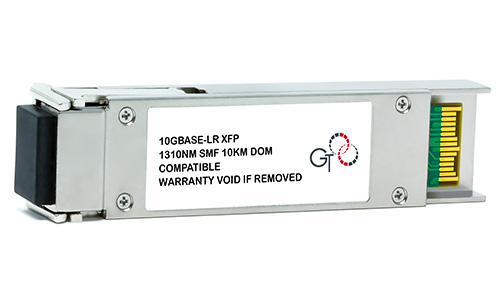

Features
- Data rates from 9.95 Gbps to 10.5 Gbps
- Up to 10KM over 9/125 SMF
- Uncooled 1310nm DFB laser
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
Applications
- 10GBASE-LR/LW Ethernet
- 10GB Fiber Channel 10KM
- SONET OC-192/SDH STM-64
Compliance
- IEEE 802.3ae 10GBASE-LR/LW
- XFP 10GFC / OC192
- XFP MSA
- RoHS-6
Features
- Data rates from 9.95 Gbps to 10.5 Gbps
- Up to 40KM over 9/125 SMF
- Uncooled 1550nm DFB laser
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
Applications
- 10GBASE-ER/EW Ethernet
- 10GB Fiber Channel 40KM
- SONET OC-192/SDH STM-64
Compliance
- IEEE 802.3ae 10GBASE ER/EW
- XFP 10GFC / OC192
- XFP MSA
- RoHS-6
- Class 1 laser product EN 60825-1
Features
- Data rates from 9.95 Gbps to 10.5 Gbps
- Up to 80KM over 9/125 SMF
- Temperature stabilized 1550nm EML laser
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
Applications
- 10GBASE-ZR/ZW Ethernet
- 10GB Fiber Channel 10KM
- SONET OC-192/SDH STM-64
Compliance
- IEEE 802.3ae 10GBASE ZR/ZEW
- XFP 10GFC / OC192
- XFP MSA
- RoHS-6
- Class 1 laser product EN 60825-1

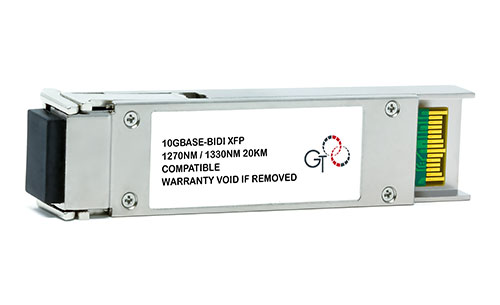

Features
- Data rates up to 10.5 Gbps
- Simplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
- 20km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
- 40km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
- 60km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
- 80km - 1490nm Tx / 1550nm Rx & 1550nm Tx / 1490nm Rx
Applications
- 10GBASE Ethernet
- 10GB Fiber Channel
Compliance
- IEEE 802.3ae 10GBASE
- XFP 10GFC
- XFP MSA
- RoHS-6

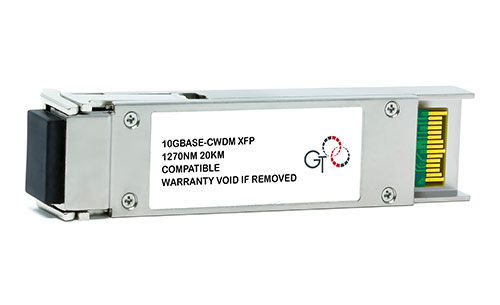

Features
- Data rates up to 10.5 Gbps
- Duplex LC Connector
- 30 pin XFP compatible connector
- Hot-pluggable XFP footprint
- Built-in Digital Diagnostic Functions
- Standard bail mechanism
- 40km – 1470nm to 1610nm
- 80km – 1470nm to 1610nm
Applications
- 10GBASE Ethernet
- 10GB Fiber Channel
Compliance
- IEEE 802.3ae 10GBASE
- XFP 10GFC
- XFP MSA
- RoHS-6
