SFP+

10GBase Small Form Factor Pluggable Transceivers

The SFP+ (enhanced small form-factor pluggable) is an enhanced version of the SFP that supports data rates up to 10 Gb/s. SFP+ supports 8 Gbit/s Fibre Channel, 10 Gigabit Ethernet, Optical Transport Network standard OTU2, as well as 16G Fibre Channel. modules are exactly the same dimensions as regular SFPs, allowing the equipment manufacturer to re-use existing physical designs for 24 and 48-port switches and modular line cards. In comparison to earlier XENPAK or XFP modules, SFP+ modules leave more circuitry to be implemented on the host board instead of inside the module.

SFP+ Media Types

10GBase-USR
10GBase-SR
10GBase-LRM
10GBase-LR
10GBase-ER 1310nm
10GBase-ER 1550nm

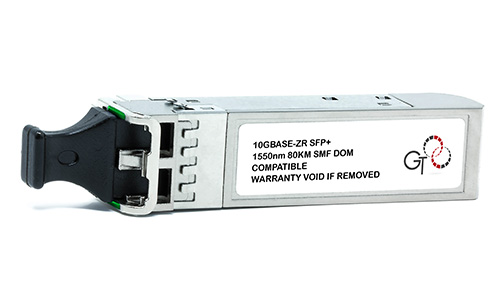

10GBase-ZR 80km
10GBase-ZR 100km

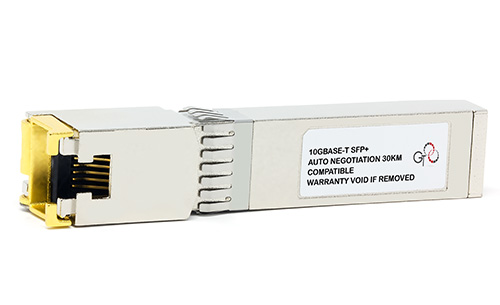

10GBase-T
10GBase-T 80km
1G/10GBase-SR
1G/10GBase-LR

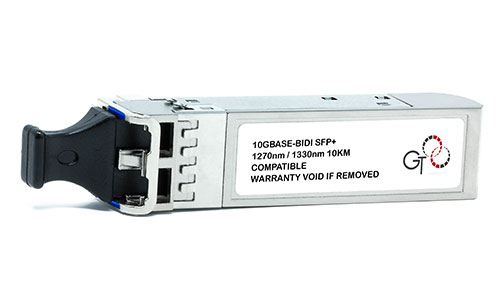

10GBase BiDi
10GBase CWDM

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 100m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae 10GBase-SR/SW
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 300m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae 10GBase-SR/SW
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 220m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 40km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1550nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 40km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1550nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 80km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1550nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 100km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE Ethernet

Compliance

  • IEEE 802.3ae
  • MSA SFF8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 10GBd bi-directional data links
  • Hot-pluggable SFP footprint
  • Support 10GBase-T operation in host system
  • RJ-45 Connectors
  • Auto-sense MDI/MDIX
  • Up to 30M over Cat 6A/7 copper cabling

Applications

  • 10GBd Gigabit Ethernet

Compliance

  • IEEE 802.3az
  • SFP MSA SFF-8472, SFF-8431
  • RoHS

Features

  • Up to 10GBd bi-directional data links
  • Hot-pluggable SFP footprint
  • Support 10GBase-T operation in host system
  • RJ-45 connectors
  • Auto-sense MDI/MDIX
  • Up to 80M over Cat 6A/7 copper cabling
  • Power consumption <1.6W @ 10Gbps for 30m
  • Power consumption <2.06W @ 10Gbps for 80m

Applications

  • 10GBd Gigabit Ethernet

Compliance

  • IEEE 802.3az
  • SFP MSA SFF-8432, SFF-8431
  • RoHS

Features

  • Up to 1.25GBd or 10.7 GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 300m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE-SR/SW Ethernet
  • 1000BASE-SX 1G Ethernet

Compliance

  • IEEE 802.3-2005 10GBase-SR/SW
  • MSA SFF-8431
  • SFP 10G FC
  • RoHS Compliant

Features

  • Up to 1.25GBd or 10.7 GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm DFB laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10km over single mode fiber
  • Single power supply 3.3V

Applications

  • 10GBASE-LR/LW Ethernet
  • 1000Base-LX Ethernet

Compliance

  • IEEE 802.3ae 10GBase-LR/LW
  • IEEE 802.3ae 1000Base-LX
  • MSA SFF8431
  • RoHS Compliant

Features

  • Up to 10.7GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Simplex LC connector
  • Built-in digital diagnostic function
  • Single power supply 3.3V
Configuration Options
  • 10km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
  • 20km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
  • 40km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
  • 60km - 1270nm Tx / 1330nm Rx & 1330nm Tx / 1270nm Rx
  • 80km - 1490nm Tx / 1550nm Rx & 1550nm Tx / 1490nm Rx

Applications

  • 10GBd Gigabit Ethernet

Compliance

  • IEEE 802.3ae
  • SFP MSA SFF-8431
  • Fibre Channel
  • RoHS Compliant

Features

  • Up to 11.1GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Single power supply 3.3V
Configuration Options
  • 10km – 1270nm to 1610nm
  • 40km – 1270nm to 1610nm
  • 80km – 1470nm to 1610nm

Applications

  • 10GBd Gigabit Ethernet

Compliance

  • IEEE 802.3ae
  • SFP MSA SFF-8431
  • Fibre Channel
  • RoHS Compliant
8GBase-SR FC
8GBase-LR FC
8GBase-ER FC 1310nm
8GBase-ER FC 1550nm
16G/8G/4G-FC SR
16G/8G/4G-FC LR
16G/8G/4G-FC ER

Features

  • Up to 8.5GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 300m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 8Gbps / 4Gbps / 2Gbps SR Fiber Channel

Compliance

  • MSA SFF8431
  • SFP 8G FC
  • RoHS Compliant

Features

  • Up to 8.5GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 10km over single mode fiber
  • Single power supply 3.3V

Applications

  • 8Gbps / 4Gbps / 2Gbps SR Fiber Channel

Compliance

  • MSA SFF8431
  • SFP 8G FC
  • RoHS Compliant

Features

  • Up to 8.5GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1310nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 40km over single mode fiber
  • Single power supply 3.3V

Applications

  • 8Gbps / 4Gbps / 2Gbps SR Fiber Channel

Compliance

  • MSA SFF8431
  • SFP 8G FC
  • RoHS Compliant

Features

  • Up to 8.5GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 1550nm VCSEL laser transmitter
  • Duplex LC connector
  • Built-in digital diagnostic function
  • Up to 40km over single mode fiber
  • Single power supply 3.3V

Applications

  • 8Gbps / 4Gbps / 2Gbps SR Fiber Channel

Compliance

  • MSA SFF8431
  • SFP 8G FC
  • RoHS Compliant

Features

  • Up to 16GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • 850nm VCSEL laser transmitter
  • Duplex LC connector
  • Up to 100m over OM3 multi-mode fiber
  • Single power supply 3.3V

Applications

  • 16GB/8GB/4GB Fiber Channel

Compliance

  • SFP FC
  • MSA SFF8431
  • RoHS Compliant

Features

  • Up to 16GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Uncooled 1310nm DFB laser transmitter
  • Duplex LC connector
  • Up to 10km over 9/125 um singlemode fiber
  • Single power supply 3.3V

Applications

  • 16GB/8GB/4GB Fiber Channel

Compliance

  • SFP FC
  • MSA SFF8431
  • RoHS Compliant

Features

  • Up to 16GBd bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Uncooled 1310nm DFB laser transmitter
  • Duplex LC connector
  • Up to 40km over 9/125 um singlemode fiber
  • Single power supply 3.3V

Applications

  • 16GB/8GB/4GB Fiber Channel

Compliance

  • SFP FC
  • MSA SFF8431
  • RoHS Compliant

Compatible Manufacturers

GigaTech Products has been a leading manufacturer of compatible transceivers and cables for over a decade, bringing customers affordable alternatives to Cisco, Juniper, Brocade, Dell, and HP original items. With the ability to custom code transceivers and direct attach network cables, GigaTech can provide compatible alternatives for most lesser-known brands, while ensuring 100% compatibility

Optical Transceiver Standards & Compliance​

Never Sourced. Never Recycled.

All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,

Rigorous Testing & Standards Compliance

The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
