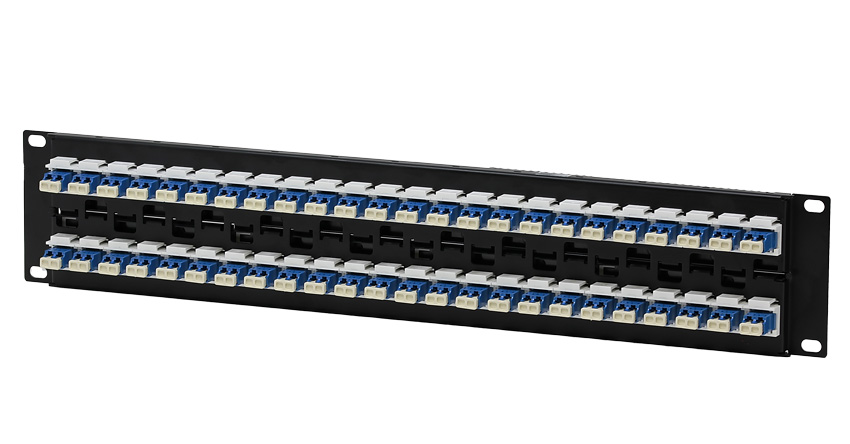

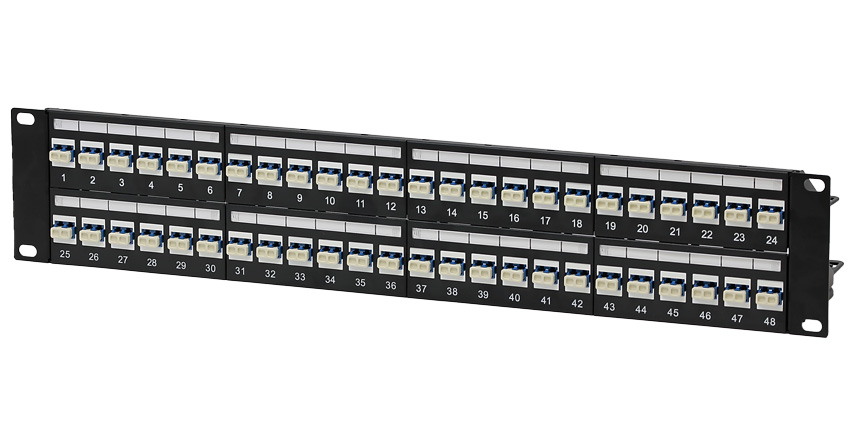

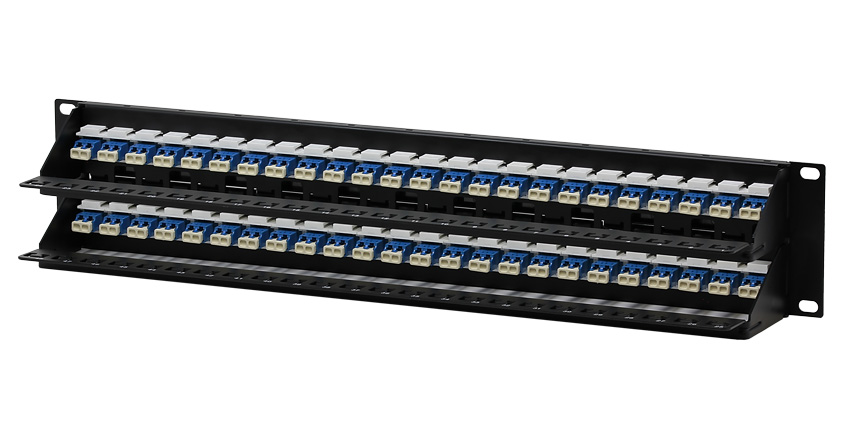

GT-LCDS-KCHDPPR2U-48B

LC Duplex Singlemode, Keystone Coupler Loaded HD Flush Mount Patch Panel, Rack Mount 2U- 48 Port Blue

Overview
Specifications
Resources
  • 2U Rack Mountable
  • TIA/EIA-568.3-D Adapter Colors
  • Up to 48 LC duplex connections
  • Tool-less adapter removal
  • Mounts to standard 19” EIA Rack

The GigaTech Products GT-LCDS-KCHDPPR2U-48B provides a rugged 2U rack mount solution for high density fiber termination. Constructed from 1.5mm cold-rolled carbon steel, it features 48 LC Duplex singlemode ports to create a complete system for connectivity . Designed to be applied in LANs housing, optical communication, FTTD, and data center cabling these LC Fiber Patch Panels offer a flexible solution to proper cable management, ease of maintenance, and cost efficient fiber deployment. As with all GigaTech Products, these panels are tested for quality and reliability and are covered by our standard Lifetime Warranty.

Product Type Fiber Patch PanelRack Spaces2U
MaterialSPCC SteelLoadedYes
Adapter TypeLC Duplex SinglemodeFiber ModeOS2 9/125µm
InstallationEIA 19" Rack Rails Cable Entry Front & Rear
Dimensions88mm x 482.6mmMount TypeRack Mount
