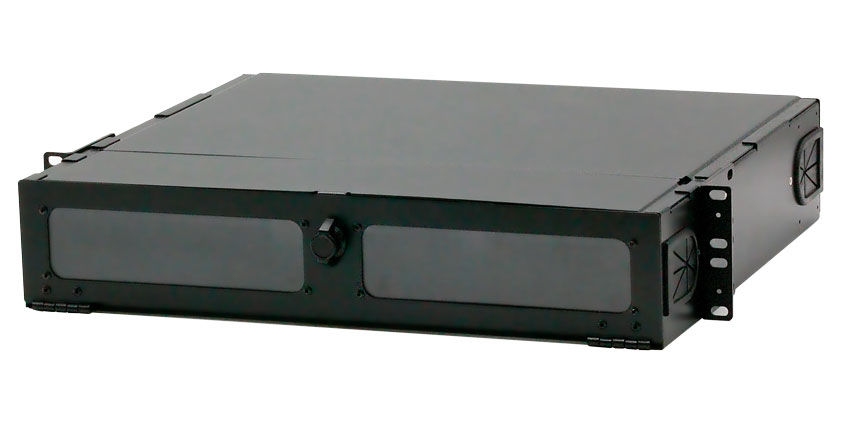

GT-ENC2U-6S_angle

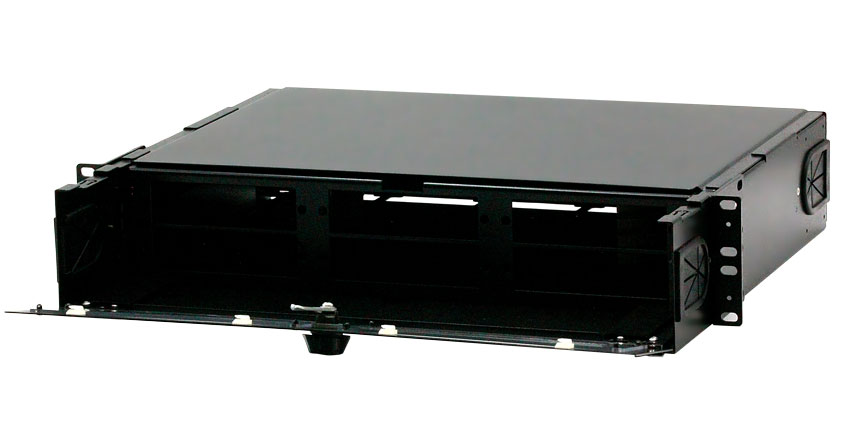

GT-ENC2U-6S_open
GT-ENC2U-6S_back
Overview
Specifications
Resources
  • 2U Rack Mountable
  • Modular design
  • Up to 6 FHD Plates/Cassettes/Splice Trays
  • Dual window Hinged Door for Visibility
  • Tool-less Adapter Removal
  • Mounts to standard 19” EIA Rack

The GigaTech Products GT-ENC2U-6S provides a rugged 2U rack mount solution for high density fiber termination. Constructed from 1.5mm cold-rolled carbon steel, it features 6 pass-through ports for the easy installation of FHD fiber adapter plates and cassettes. As with all GigaTech products, these enclosures are tested for quality and reliability and are covered by our standard Lifetime Warranty.

Product Type Fiber Patch EnclosureRack Spaces2U
MaterialSPCC SteelLoadedUnloaded
Door TypeHingedMount TypeRack Mount
InstallationEIA 19" Rack Rails Cable Entry Side & Rear
Dimensions88.1 x 482.6 x 402.7mm ApplicationAccepts FHD Panels/Cassettes
