Patch Panels
Connecting Fiber and Copper
A patch panel is a piece of hardware with multiple ports that helps organize a group of cables. Each of these ports contains a wire that goes to a different location. Patch panels can be quite small, with just a few ports, or very large, with many hundreds of ports. They can also be set up for fiber optic cables, cat5 cables, RJ45 cables, and many others.

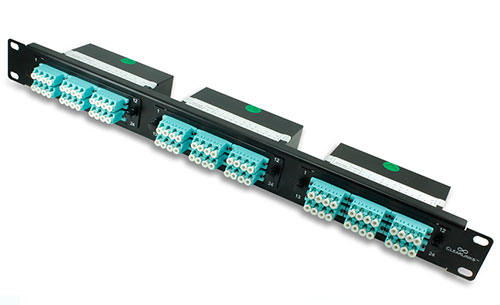

Fiber Patch Panels
Features
- Customizable 1U 3 Slot Metal Rack Mountable Panel
- Connects to Front of Rack for Open Panel Enviornment Internconnectivity
- LC, SC, SCA and 24MTP/LC Cassettes Available
- Cassettes – No Hardware Needed, Easy Insert / Release
- Can Ship Preassembled or Separately for Customer to Assemble
Applications
- FHD Plates, Cassettes, and Splice Trays
Compliance
- RoHS Compliant
- ISO9001
- TIA/EIA-568-C.3

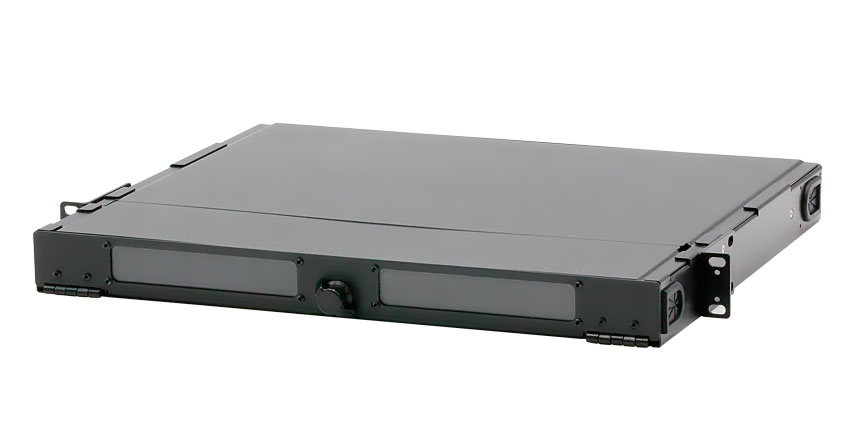

Features
- 1U Rack Mountable
- Modular design
- Up to 3 FHD Plates/Cassettes/Splice Trays
- Dual window Hinged Door for Visibility
- Tool-less Adapter Removal
- Mounts to standard 19” EIA Rack
Applications
- FHD Plates, Cassettes, and Splice Trays
Compliance
- RoHS Compliant
- ISO9001
- TIA/EIA-568-C.3

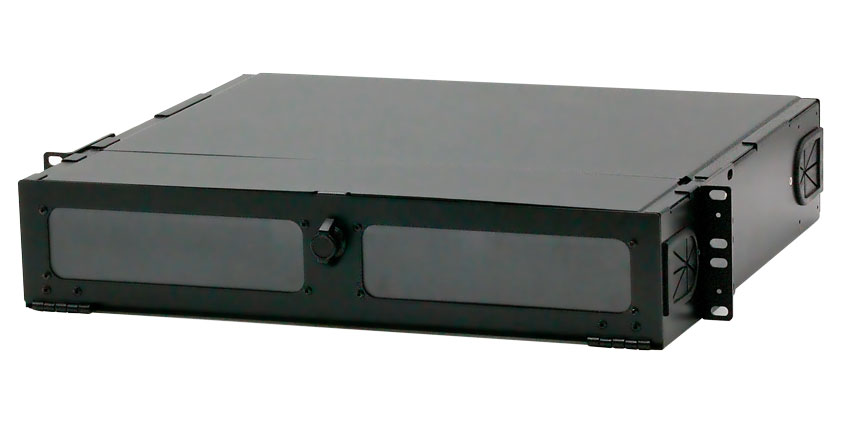

Features
- 2U Rack Mountable
- Modular design
- Up to 6 FHD Plates/Cassettes/Splice Trays
- Dual window Hinged Door for Visibility
- Tool-less Adapter Removal
- Mounts to standard 19” EIA Rack
Applications
- FHD Plates, Cassettes, and Splice Trays
Compliance
- RoHS Compliant
- ISO9001
- TIA/EIA-568-C.3

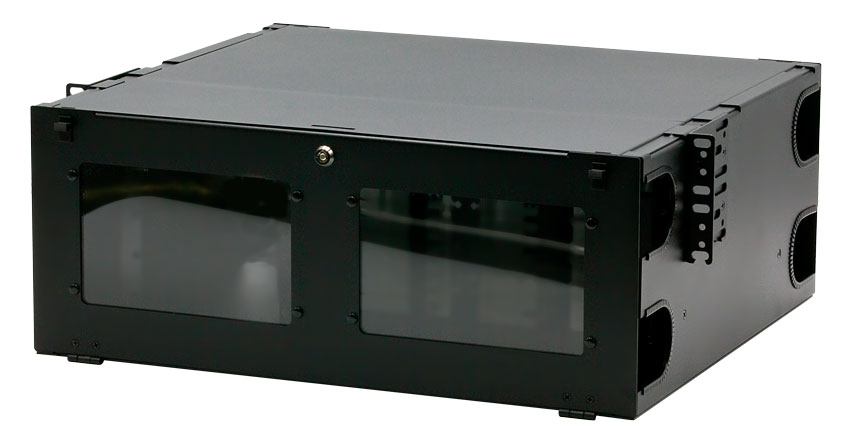

Features
- 4U Rack Mountable
- Modular design
- Up to 12 FHD Plates/Cassettes/Splice Trays
- Dual window Hinged Door for Visibility
- Tool-less Adapter Removal
- Mounts to standard 19” EIA Rack
Applications
- FHD Plates, Cassettes, and Splice Trays
Compliance
- RoHS Compliant
- ISO9001
- TIA/EIA-568-C.3

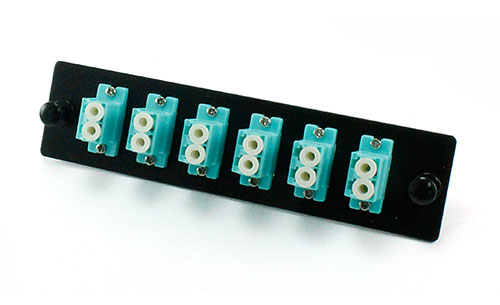

| GT-PLT-LCDM-6 | Fiber Plate 6x LC Duplex Multimode |

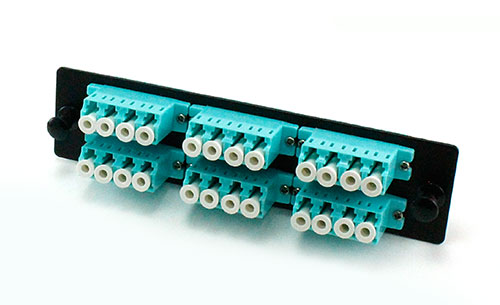

| GT-PLT-LCDM-12 | Fiber Plate 12x LC Duplex Multimode |
| GT-PLT-LCDS-6 | Fiber Plate 6x LC Duplex Singlemode |
| GT-PLT-LCDS-12 | Fiber Plate 12x LC Duplex Singlemode |
| GT-PLT-LCADS-6 | Fiber Plate 6x LC-APC Duplex Singlemode |

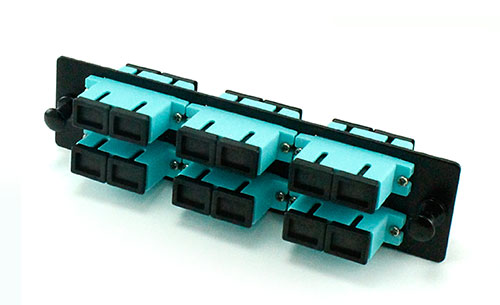

| GT-PLT-SCDM-6 | Fiber Plate 6x SC Duplex Multimode |
| GT-PLT-SCDS-6 | Fiber Plate 6x SC Duplex Singlemode |
| GT-PLT-SCADS-6 | Fiber Plate 6x SC-APC Duplex Singlemode |
| GT-PLT-BLANK | Fiber Plate Blank |
| GT-CAS-MPM-LC12-AMM | Fiber Cassette MTP Male to 12xLC/UPC Method-A Multimode |
| GT-CAS-MPM-LC12-AFMM | Fiber Cassette MTP Male to 12xLC/UPC Method-A Flipped Multimode |
| GT-CAS-MPM-LC12-BUMM | Fiber Cassette MTP Male to 12xLC/UPC Method-B Universal Multimode |
| GT-CAS-MPAM-LC12-ASM | Fiber Cassette MTP-APC Male to 12xLC/UPC Method-A Singlemode |
| GT-CAS-MPAM-LC12-AFSM | Fiber Cassette MTP-APC Male to 12xLC/UPC Method-A Flipped Singlemode |
| GT-CAS-MPAM-LC12-BUSM | Fiber Cassette MTP-APC Male to 12xLC/UPC Method-B Universal Singlemode |
| GT-CAS-MPM2-LC24-AMM | Fiber Cassette 2xMTP Male to 24xLC/UPC Method-A Multimode |
| GT-CAS-MPM2-LC24-AFMM | Fiber Cassette 2xMTP Male to 24xLC/UPC Method-A Flipped Multimode |
| GT-CAS-MPM2-LC24-BUMM | Fiber Cassette 2xMTP Male to 24xLC/UPC Method-B Universal Multimode |
| GT-CAS-MPAM2-LC24-ASM | Fiber Cassette 2xMTP-APC Male to 24xLC/UPC Method-A Singlemode |
| GT-CAS-MPAM2-LC24-AFSM | Fiber Cassette 2xMTP-APC Male to 24xLC/UPC Method-A Flipped Singlemode |
| GT-CAS-MPAM2-LC24-BUSM | Fiber Cassette 2xMTP-BPC Male to 24xLC/UPC Method-B Universal Singlemode |
| GT-CAS-MP24M-LC24-AMM | Fiber Cassette MTP24 Male to 24xLC/UPC Method-A Multimode |
| GT-CAS-MP24M-LC24-AFMM | Fiber Cassette MTP24 Male to 24xLC/UPC Method-A Flipped Multimode |
| GT-CAS-MP24AM-LC24-ASM | Fiber Cassette MTP24-APC Male to 24xLC/UPC Method-A Singlemode |
| GT-CAS-MP24AM-LC24-AFSM | Fiber Cassette MTP24-APC Male to 24xLC/UPC Method-A Flipped Singlemode |
Copper Patch Panels
Features
- UL, CM Rated Jacket
- 4 Pair, 100% Copper, 24 AWG
- Slim Molded Snag-free Claw Boots (Ultra flexible)
- Elongated Mod Plugs for “Deep” depth switching cavities
- 50um Gold Plating on Mod-Plug contacts
Features
- UL, CM Rated Jacket
- 4 Pair, 100% Copper, 28 AWG
- Slim Molded Snag-free Claw Boots (Ultra flexible)
- 8mm diameter slim jacket
- Elongated Mod Plugs for “Deep” depth switching cavities
- 50um Gold Plating on Mod-Plug contacts
Features
- UL, CM Rated Jacket
- 4 Pair, 100% Copper, 28 AWG
- Slim Molded Snag-free Claw Boots (Ultra flexible)
- 8mm diameter slim jacket
- Elongated Mod Plugs for “Deep” depth switching cavities
- 50um Gold Plating on Mod-Plug contacts
Features
- UL, CM Rated Jacket
- 4 Pair, 100% Copper, 28 AWG
- Slim Molded Snag-free Claw Boots (Ultra flexible)
- 8mm diameter slim jacket
- Elongated Mod Plugs for “Deep” depth switching cavities
- 50um Gold Plating on Mod-Plug contacts
Features
- Up to 1.25GBd bi-directional data links
- Hot-pluggable SFP footprint
- 850nm VCSEL laser transmitter
- Duplex LC Connectors
- Built in Digital Diagnostics
- Up to 300M over 62.5/125 MMF
- Up to 550M over 50/125 MMF
- Single power supply 3.3V
- Operating temperature range C-Temp: 0℃ to 70℃
Applications
- 1.25GBd Gigabit Ethernet
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS
- Class 1 laser product EN 60825
Hardware Standards & Compliance
Never Sourced. Never Recycled.
All components in GigaTech Product hardware are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in hardware quality often found with online resellers who source their components from an ever changing vendor list. The product is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every product we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
