MMA1U50-WS-GT
400GbE QSFP-DD SR8 850nm MPO Optical Transceiver NVIDIA Mellanox Compatible
Features & Benefits
Breakout Options
Applications
As organizations continue to grow, they must take advantage of bandwidth-intensive applications like artificial intelligence, the Internet of Things (IoT), and advanced analytics. These applications require high bandwidth and low-latency connectivity to work optimally. Legacy infrastructure and small circuits simply can’t keep up with today’s demand. Advance your network with GigaTech Products NVIDIA Mellanox compatible transceivers to support 400G speeds required for a high-performance AI GPU infrastructure.
Benefits:
- Eight Parallel Lanes Allow for Direct 400G Connection or Breakout to Lower Bandwidth Applications
- Up to 100M Reach, Allowing Customization in Design Implementation
- Low Cost Solution for High Bandwidth Output
The GigaTech Products NVIDIA Mellanox compatible MMA1U50-WS-GT is programmed to be fully compatible and functional with all intended NVIDIA Mellanox switching devices. This QSFP-DD optical transceiver is a double density parallel fiber optical module. The transceiver consists of eight independent optical transmit and receive channels, each capable of 50Gb/s per lane PAM4PAM-4 stands for Pulse Amplitude Modulation – 4, where ‘4’ refers to the number of different amplitude levels of the electrical or optical signal carrying the digital data. Click to Read More electrical interface. This module is compliant with the QSFP-DD MSA standards. This module is designed for multimode fiber using MPO/MTP 16-fiber connection and operates at a nominal wavelength of 850nm up to 100m.
Features:
- 400GbE data rate
- 8x 53.125Gbps data rate per channel
- MPO/MTP-16 connector
- Hot-pluggable QSFP-DD footprint
- Up to 100M over OM4
1x QSFP-DD 400G
MMA1U50-WS-GT
MTP/MPO-16 400G Link
MMA1U50-WS-GT
Direct Connection between MMA1U50-WS-GT Transceivers for 400G Connectivity
2x QSFP56 200G
MMA1U50-WS-GT
MTP/MPO-16 400G to 2x 200G MTP-12 Breakout
MMA1T00-VS-GT
The MMA1U50-WS-GT Transceiver Supports 2x 200G-SR4 Breakout Capability
8x SFP56 200G
MMA1U50-WS-GT
MTP/MPO-16 400G to 8x 50G LC Duplex Breakout
50G SFP56
The MMA1U50-WS-GT Transceiver Supports up to 8x 50G-SR Breakout Capability
Applications:
Data Center
Infiniband HDR
400G Ethernet
400G Leaf-Spine NVIDIA Implementation
Core
Spine
Leaf
TOR

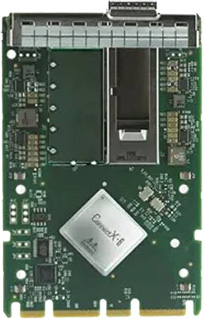

ConnectX
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
MMA1U50-WS-GT
400G SR8
400G Switch to Server Implementation Diagram
Leaf to Top of Rack Example Implemented Illustrating Connection to Server Application. ToR Incorporating MMA1U50-WS-GT Provides Direct & Breakout Capabilities for Multiple Demand
Never Sourced. Never Recycled.
All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
