GT-SCASCADS2T-xM

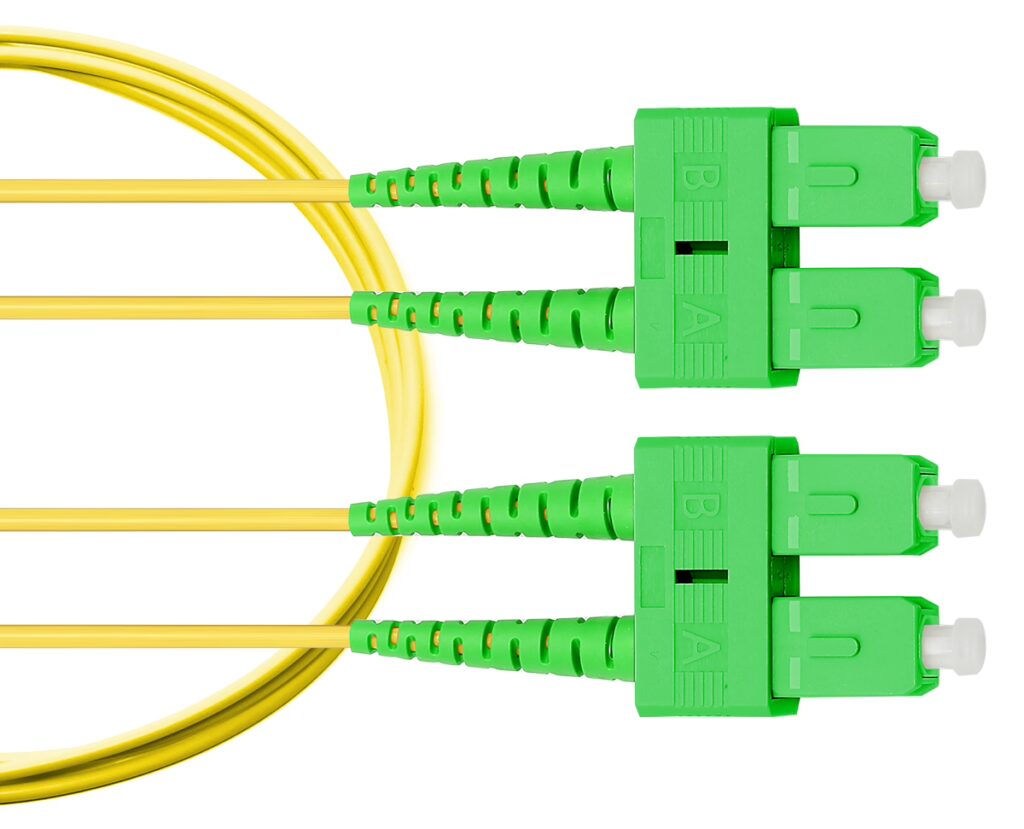

SC-APC/SC-APC Duplex Singlemode OS2 9/125 Cable Yellow- xM
Product Overview
The GigaTech Products GT-SCASCADS2Y-xM fiber optic patch cords are ideal for short distance patching applications. These fiber optic cables have been built to exceed industry standards and are tested for insertion loss and reflectance on all connectors. They are constructed using corning glass within UL certified OFNR (Riser) rated jacket with Kevlar yarn, and are factory terminated resulting in uncompromised performance.
Performance:
Insertion Loss (max.): 0.3dB
Return Loss: >55dB
Storage Temperature: -40°C +80°C
Operation Temperature: -20°C +70°C
Mating Durability: <0.2dB
Attenuation dB/km max.: 1.0
Fiber:
Core Diameter: 9μm
Cladding Diameter: 125μm
Inner Strength Material: Kevlar
Connector Type (1): SC-APC
Connector Style(1): Duplex
Connector Type (2): SC-APC
Connector Style (2): Duplex
Jacket:
Jacket Size: 1.25mm
Jacket Style: Duplex Zipcord PVC
Jacket Color: Yellow
Fire Rating: OFNR (Riser)
1
Mode | Ferrule | Housing | Clip | Boot | Cap |
SM-APC | Zirconia (Ø1.25mm) | Green(PBT) | Green(ABS) | Green(TPE) | Clear(PE) |
2
Category | Jacket O.D. | Jacket Material | Color |
G.65782(9/125um) | Ø2mm | PVC OFNR | Yellow |
