GT-MPA4LCDS2Y2-xM

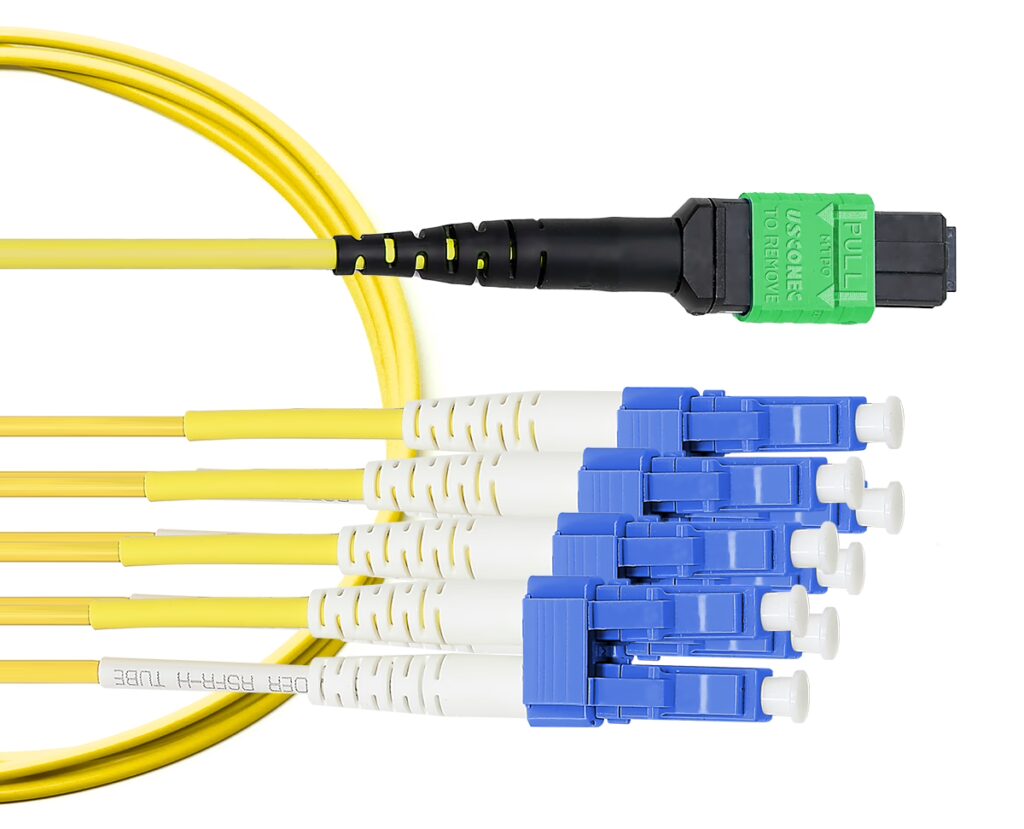

MTP-APC Female to 4xLC Duplex Singlemode OS2 9/125 Cable Yellow- xM
Product Overview
The GigaTech Products GT-MPA4LCDS2Y2-xM fiber optic patch cords are ideal for short distance patching applications. These fiber optic cables have been built to exceed industry standards and are tested for insertion loss and reflectance on all connectors. They are constructed using corning glass within UL certified OFNP (Plenum) rated jacket with Kevlar yarn, and are factory terminated resulting in uncompromised performance.
Performance:
MTP Insertion Loss (max.): <0.35dB
MTP Optical Return Loss: >60dB
LC Insertion Loss (max.): <0.15dB
LC Optical Return Loss: >55dB
Storage Temperature: -40°C +80°C
Operation Temperature: -20°C +70°C
Attenuation dB/km max.: 1.0
Fiber:
Core Diameter: 9μm
Cladding Diameter: 125μm
Inner Strength Material: Kevlar
Connector Type (1): MTP/F-APC
Connector Style(1): Single
Connector Type (2): 4x LC-APC
Connector Style (2): Duplex
Jacket:
Jacket Size: 3mm
Jacket Style: Multifiber PVC
Jacket Color: Yellow
Fire Rating: OFNP (Plenum)
1
Mode | Ferrule | Housing | Boot | Cap |
SM | 12 Fiber SM APC Low Loss | Green(PBT) | Black(TPR) | Black(TPR) |
2
Mode | Ferrule | Housing | Clip | Boot | Tube | Cap |
SM | Zirconia (Ø1.25mm) | Blue{PC) | Blue{PP) | White(TPE) | White/Yellow(PVC) | White(PE) |
3
Category | Jacket O.D. | Jacket Material | Color |
G.65781(9/125um) | Ø3mm | PVC OFNP | Yellow |
