Gigatech Products provides stock and custom MTP cables in a variety of configurations including 12 and 24 fiber connections, single and multimode wiring, custom lengths, and multiple pin out options . Each cable connection is machine polished to ensure low insertion loss and back reflection and the highest quality data transfer.  Test results are included in each cable bag and all cables are backed by a lifetime warranty. These MTP cables provide easy plug and play connectivity with all QSFP, OSFP, CFP, and CPAK transceivers and high-density panels in lab environments and data centers.

MTP Cable Benefits

  • US Conec™ MTP Connectors for quick connection of fibers
  • Plug and Play
  • High density interconnect
  • Removable housing for quick change of pin clamps and easy ferrule cleaning/re-polishing
  • Single-Mode and Multi-Mode color coded housing
  • Alignment achieved with high precision guide pins
  • Push/Pull mating for quick installation
  • Test data supplied with each assembly

MTP Fiber Cable Profiles

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Aqua
  • Fire Rating: OFNR (Riser)

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Aqua
  • Fire Rating: OFNR (Riser)

Performance

  • Insertion Loss (max.): 0.35dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Yellow
  • Fire Rating: OFNR (Riser)

Performance

  • Insertion Loss (max.): 0.60dB
  • Optical Return Loss: >20dB
  • Storage Temperature: -40°C +80°C
  • Operation Temperature: -20°C +70°C
  • Attenuation dB/km max.: 1.0

Fiber

  • Core Diameter: 50μm
  • Cladding Diameter: 125μm
  • Inner Strength Material: Kevlar

Jacket

  • Jacket Size: 2mm
  • Jacket Style: Duplex Zipcord PVC
  • Jacket Color: Yellow
  • Fire Rating: OFNR (Riser)

Benefits of MTP Connections

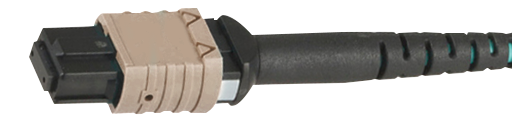

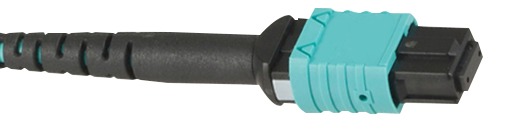

The MTP connector, a registered trademark of US Conec, is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors.

Removable Housing

The implementation of a removable case allows for repolishing

Improved Internal Components

The MTP uses a recessed metal pin clamp to ensure proper seating and force against the ferrule

Superior Mechanical Performance

Utilizing an oval spring provides more ribbon clearance and enhanced performance during cable side load testing

MTP Cable Applications

  • Telecommunications Closets
  • Networking Infrastructures
  • Enterprise Computing OEMS
  • Broadcast Communications
  • Campus Networking
  • Premise Installation
  • Test Equipment
  • High-End Industrial Controls
  • Military
  • Medical
  • Lab Environments
  • High Denisity Applications
  • Disaster Recovery Data Control
  • Data Centers
  • Roving Vehicles
