MCP7H60-W00x-GT
DAC Splitter Cable Ethernet 400GbE to 2x200GbE Mellanox Compatible
Enhance your AI infrastructure with GigaTech’s NVIDIA Mellanox-compatible solutions. Experience seamless integration and peak performance for your advanced network needs with GigaTech, your key to unlocking AI potential.
Benefits:
- Low Cost Solution for High Bandwidth Output
- Power-Efficient Connectivity for Short Distance Interconnects
- Multiple Lengths Available to Fit Installation Requirement
The GigaTech Products NVIDIA Mellanox compatible 400GbE to 2x200GbE Direct Attach Copper Splitter Cables are a high speed, cost-effective 400GbE QSFP-DD to 2x 200GbE QSFP56 EthernetEthernet is the most popular and widely used Local Area Network (LAN) technology. An Ethernet network typically makes use of coaxial or twisted pair cables to transmit network traffic. Click to Read More connectivity solution, designed to meet the growing needs for higher bandwidth in data centers. These cables provide connectivity between systems with a QSFP-DD port on one side and up to two different QSFP56 ports on the other side (8x to two 4x). Each of the ports comprises an EEPROMEEPROM stands for Electrically Erasable Programmable Read-Only Memory. Click to Read More providing product information, which can be read by the host system.
Features:
- 400GbE to 2x200GbE data rate
- Hot-plug QSFP-DD to QSFP56
- Eight-lane electrical interface transmits up to 28Gbps NRZNRZ stands for “Non Return to Zero” modulation, and describes an electrical or optical data channel where there are only two allowed amplitude levels Click to Read More or 56Gbps PAM-4
- Support I2C two-line string interface
| NVIDIA Mellanox Compatible | Cable Description |
|---|---|
| MCP7H60-W00AR30-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 0.5M |
| MCP7H60-W001R30-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 1M |
| MCP7H60-W01AR30-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 1.5M |
| MCP7H60-W002R26-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 2M |
| MCP7H60-W02AR26-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 2.5M |
| MCP7H60-W003R26-GT | DAC Splitter Cable Ethernet 400GbE to 2x200GbE NVIDIA Mellanox Compatible- 3M |
Applications:
Data Center
Infiniband HDR
400G Ethernet
Example Charts & Diagrams
NVIDIA SN4700
MCP7H60-W00x-GT

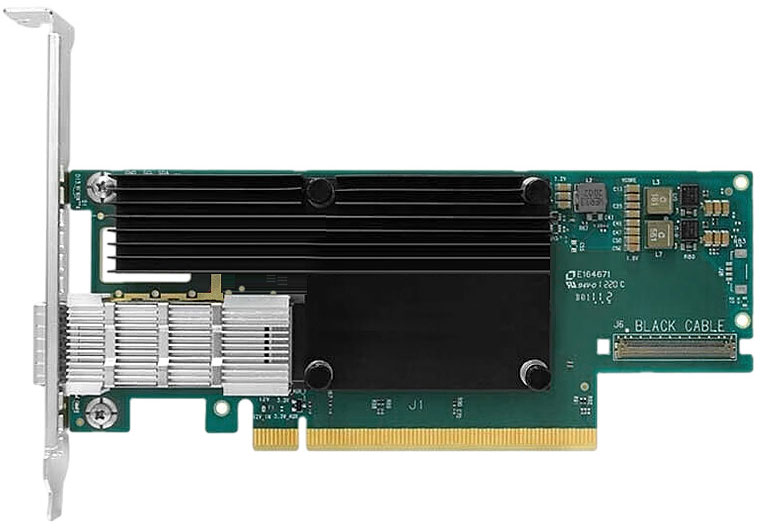

MCX653105A-HDAT
InfiniBand Adapters
Never Sourced. Never Recycled.
All components in GigaTech Product optics are manufactured under the same roof and represent the gold standard for reliability and consistency in performance. This vertical manufacture chain allows GigaTech to avoid unnecessary variances in transceiver casing or laser quality often found with online resellers who source their components from an ever changing vendor list. The transceiver is guaranteed to be built from A-Stock never used components overseen by GigaTech Products,
Rigorous Testing & Standards Compliance
The quality and standards of our hardware is one the base foundations of GigaTech Products. All of our components comply with MSA (Multi-Source Agreement) output standards and, in many cases, excel beyond those certification standards. Every transceiver we produce is tested on active network devices to ensure they comply with OEM equipment and are verified to be plug-and-play and do not require work arounds.
